Welcome to the Calculus platform

Lightning protection design software

Calculus is a free tool that allows the generation of a downloadable PDF report with the system.

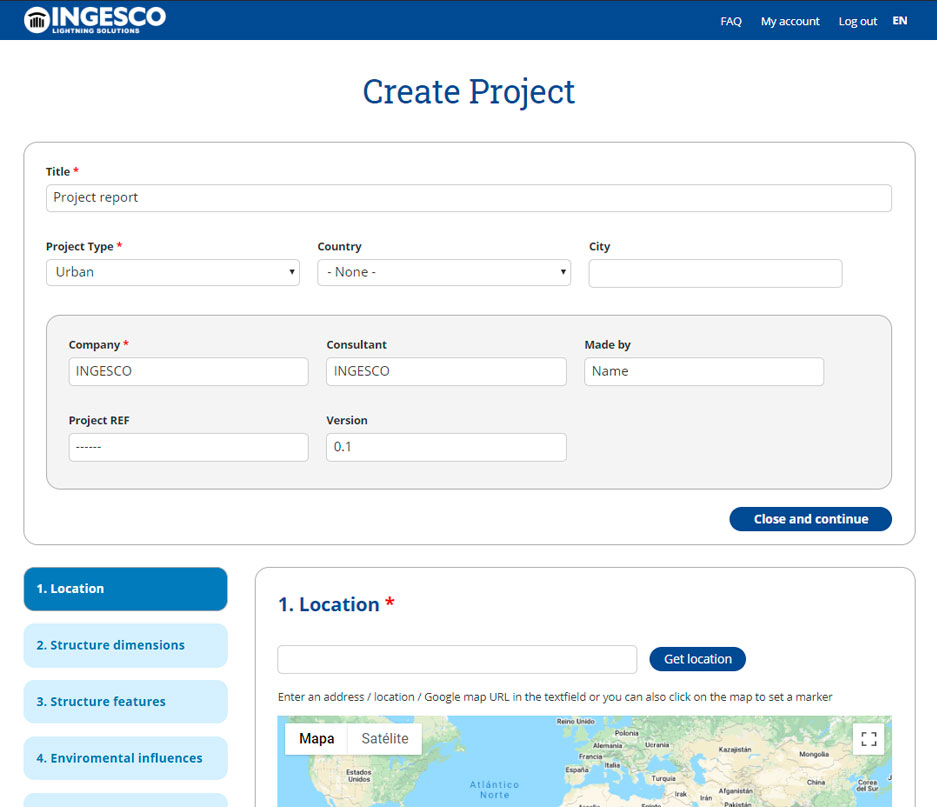

If you want to modify or recover a completed project just log in.

IEC 62.305-2	Protection against lightning - Part 2: Risk management. IEC risk assessment calculator
UNE 21.186	Protección contra el rayo - Pararrayos con dispositivo de cebado
NFC 17.102	Protection contre la foudre - Systèmes de protection contre la foudre à dispositif d’amorçage.
IEC 62793	Sistemas de alerta de tormentas - Protección contra rayos

Start project

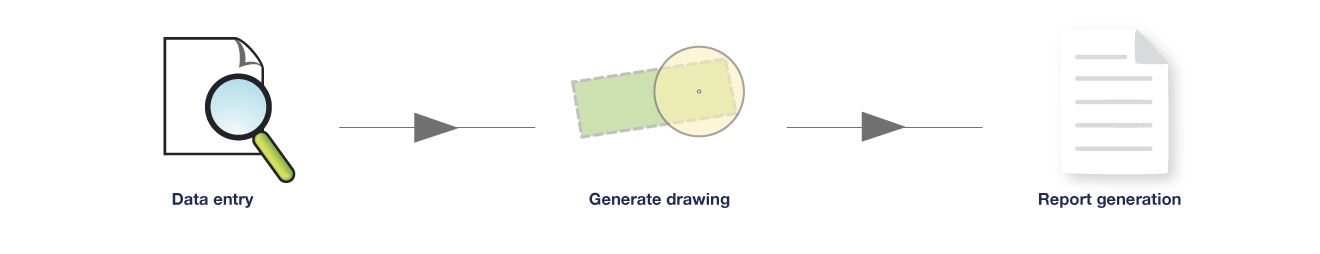

how to calculate lightning protection level

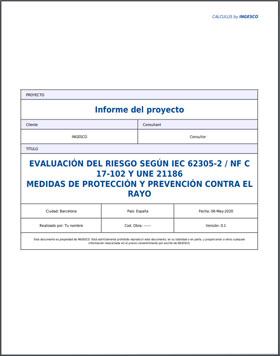

PDF REPORT

When analyzing the project, you will obtain a complete and personalized technical report with the characteristics of the lightning protection system that your structure needs to protect.

Calculation of the level of protection according to the regulations IEC 62.305-2, UNE 26.186: 2011, NFC 17.102: 2011.

You can carry out all the projects you need.

Start project

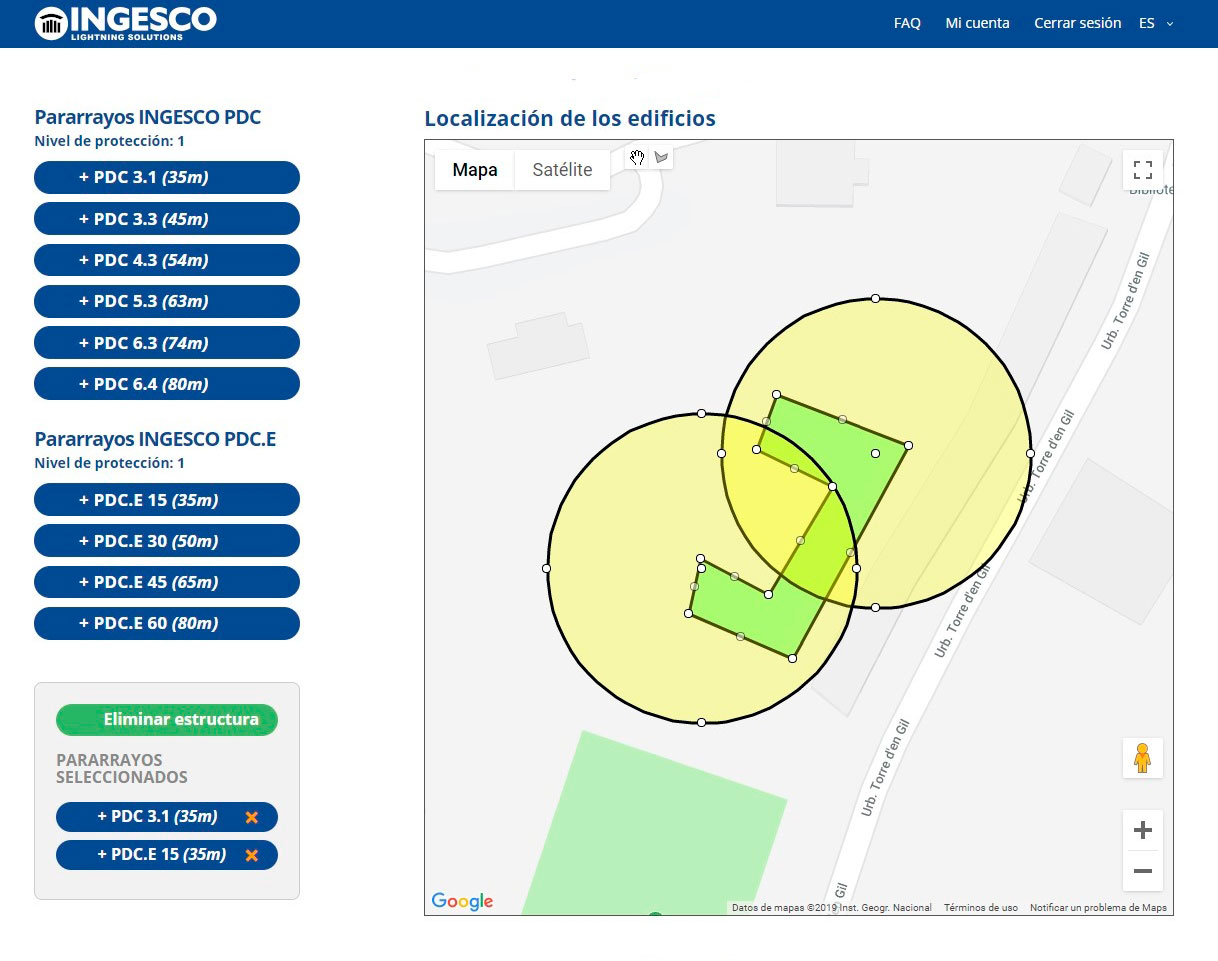

SIMULATION OF AREAS OF COVERAGE

Simulation of coverage areas with the selected lightning arresters, applied with the level of protection resulting from the calculation.

Perform a simulation of the location of the necessary lightning rods with the coverage area represented in real scale.

Start project

MODIFY IT

All projects can be modified at any time and will be saved for your registered user.

You can rebuild the protection level report whenever necessary.

Check in
